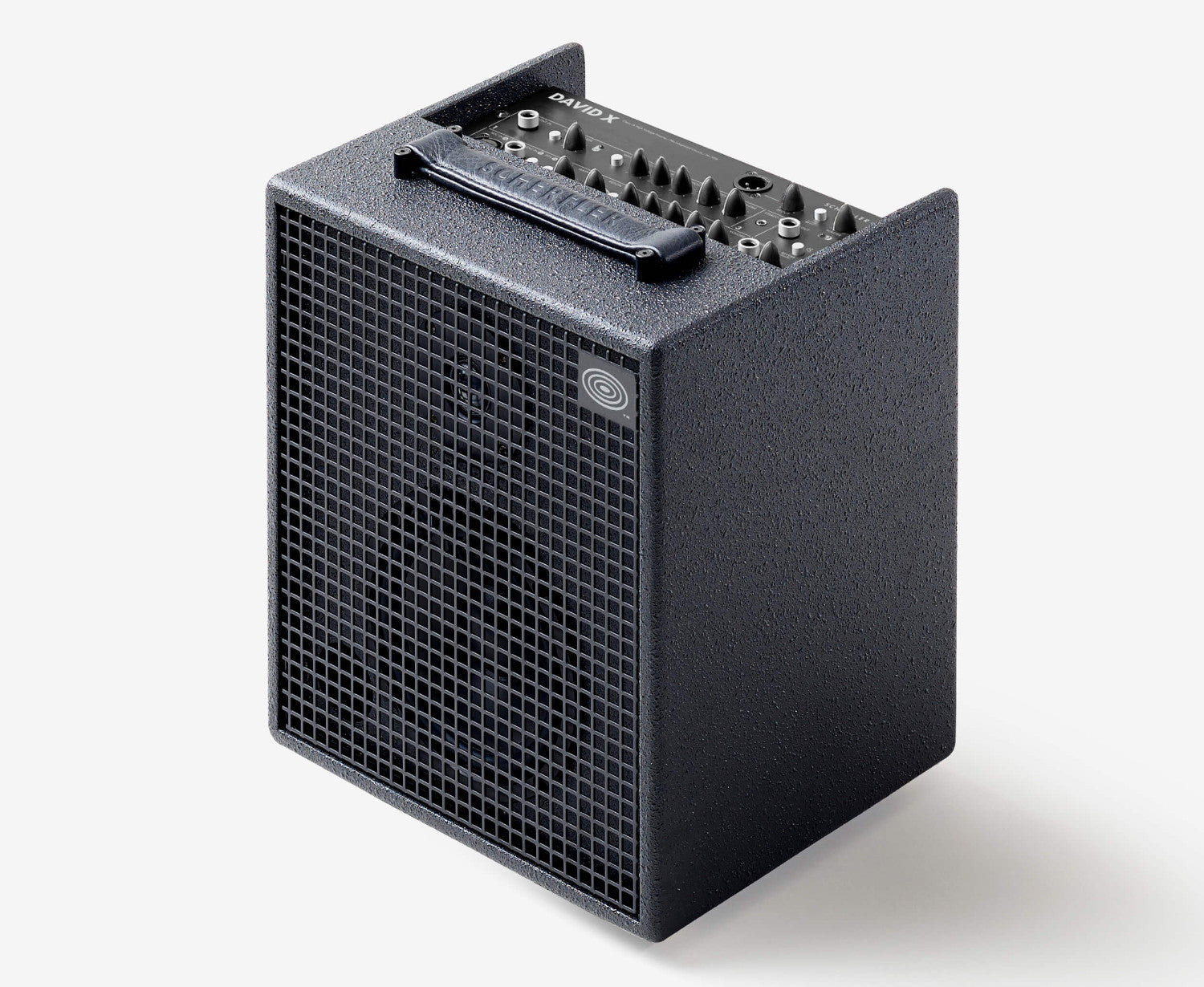

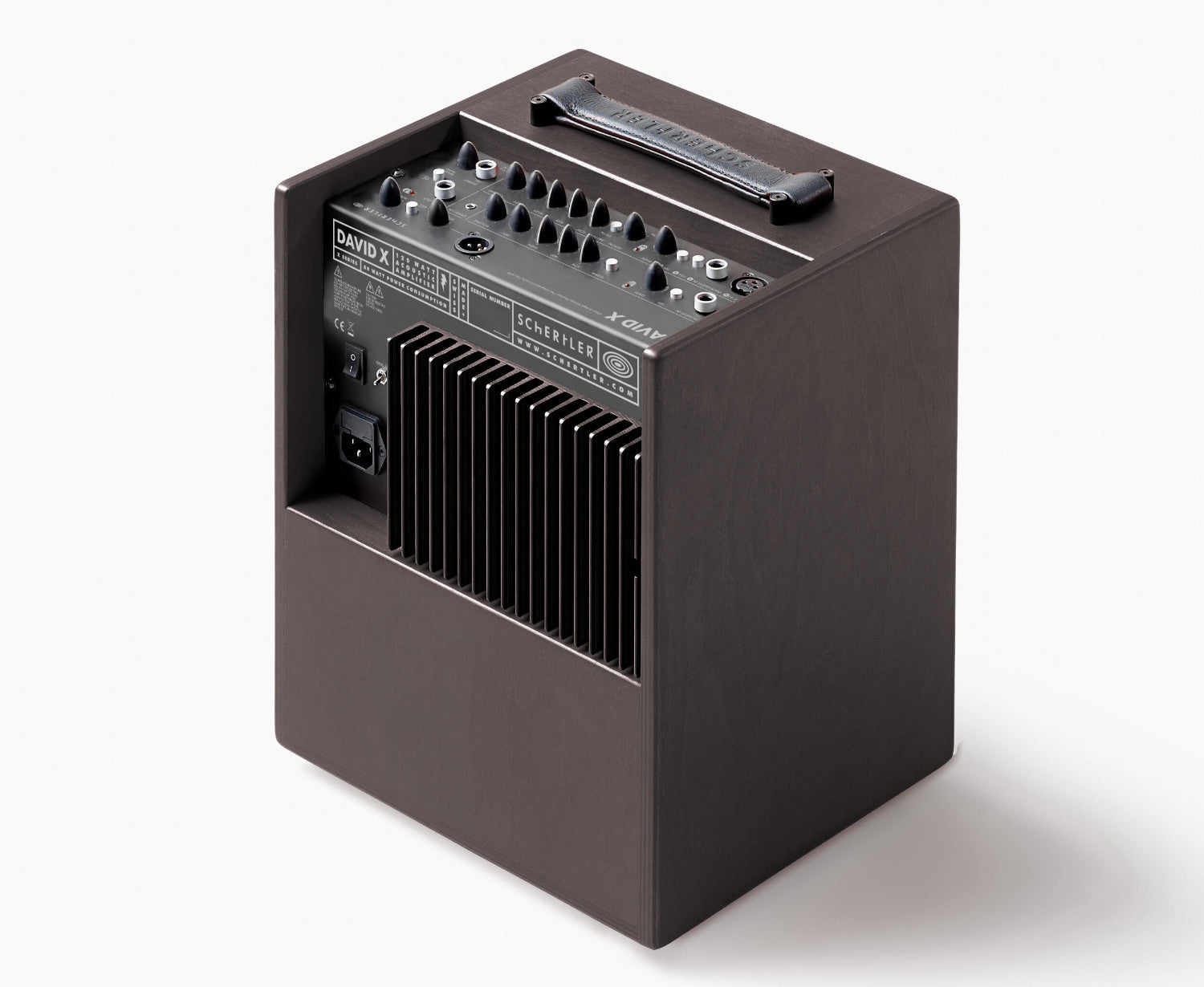

Schertler David X: Premium Swiss-Designed Amplifier for Acoustic Instruments

The Schertler David X amplifier sets the standard in Swiss amplifier design, meticulously crafted to meet every need of the modern musician. With an upgraded power amp and speaker section, along with a crossover filter network, limiter, and gain controls, the David X delivers 120W of bi-amplified analog power (112dB SPL) for top-tier sound quality.

Key Features of the Schertler David X Amplifier:

• Powerful Coaxial Speaker System: Equipped with a 1” dome tweeter and a 6” woofer, designed with a 2-way bass reflex construction to deliver superior projection and clarity.
• 120W Bi-Amplified Analog Power: Experience 112dB SPL of clear, dynamic sound, perfect for amplifying acoustic instruments without compromise.
• Ideal for Acoustic Instrument Amplification: Whether you’re practicing, recording in a home studio, or performing, the David X offers uncompromised sound quality in a compact, portable design.

Versatility and Flexibility:

• Three Inputs: The David X supports two instruments or one instrument and a vocal microphone, along with a stereo playback device, making it versatile for live performances, studio sessions, or practice.
• Portable and Compact: As one of the most portable and flexible models in the Schertler range, the David X is easy to transport without sacrificing sound quality or power.

Available in Wood or Anthracite Finishes

Choose between elegant wood or anthracite finishes, allowing you to personalize your amplifier to match your style.

Superior Class-A Preamp Technology:

The Schertler David X features a high-end Class-A preamp with no integrated circuits and No Negative Feedback, ensuring the purest, most natural sound reproduction possible.

Made in Switzerland with precision and care, the David X amplifier is the perfect choice for musicians who demand high-quality acoustic instrument amplification in a portable, stylish design.

• Power amp 120 W pure analog power amp
• Frequency response (@ +/-3dB) 45 - 20 kHz
• Sensitivity (1W/1m) @1 kHz 92 dB
• SPL Max 112 dB
• Speaker system 1” dome tweeter, 6” woofer
• Box construction 12 mm birch BB laminated
• System - Format Bass reflex - Two way, Bi-amplified
• Mic In connector XLR
• Mic In sensitivity -52 dB
• Mic In impedance 4.7 kΩ
• Instrument In connector 1/4" jack unbalanced
• Instrument In sensitivity -47 dB
• Instrument In impedance 820 kΩ
• Stereo In connector 1/8" jack stereo
• Stereo In sensitivity -10 dBu
• Stereo In impedance 40 kΩ
• Insert On master
• Line Out connector 1/4" jack
• Line Out level 0 dBu
• Line Out impedance 200 Ω
• DI Out connector XLR
• DI Out level -15 dBu
• DI Out impedance 180 Ω
• Aux Out connector No
• Aux Out level No
• Aux Out impedance No
• Phones connector No
• Phones level No
• Phantom Power (nominal) 24 VDC (XLR) / 10 VDC (jack)
• Effects Spring-type digital reverb
• Preamp Class-A, no negative feedback, no integrated circuits
• Footswitch No
• Stand mounting Flange mount ø 36 mm, h=102 mm
• Finish Dark Wood
• Dimensions 29.5 (L) x 25.5 (D) x 35.5 (H) cm
• Weight 11 kg
